Easily Clean 3/16" ISO 1436-1 1SN Wire Braid Hydraulic Hose

Brand Name : thompson

Place of Origin : China

MOQ : 4000 Meter

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 200,000 meter per month

Delivery Time : 15-20 working days

Packaging Details : wrapped with yellow/white woven belt or plastic firm

Reinforcement : 1 or 2 layers of steel wire braid

Material : Synthetic Rubber

Color : Black

Size : 3/16" - 4"

Cover : Weather Resistant Synthetic Rubber,oil-resistant synthetic(Nitrile).

Surface : smooth surface hydraulic hose

Sample : Free

Working pressure : 8.7 to 45Mpa

Business type : Manufacturer,Factory

Working temperature : -40℃ to +100℃ or -40℉ to +212℉

Oem service : Accept

Contact Now

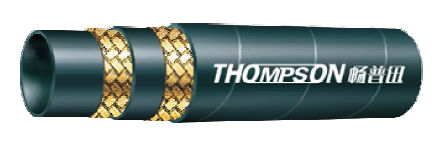

Wire Braid Flexible Hydraulic Hose From 3/16" To 1" With Easy-Clean Smooth Cover

Applicable standards: EN 853 1SN / SAE 100 R1S / ISO 1436-1 1SN

EN 853 2SN / SAE 100 R2S / ISO 1436-1 2SN

Size available from 3/16 to 1 inch, it can be made sepcially for smooth cover, and it's a market habit.
Most preferred by customers from Japan and South Korea.
The most important feature of the tube is that it is easy to clean after being stained, and the braiding quality of the pipe can be judged by the texture formed by the outer glue and the steel wire layer.

Easily Clean 3/16" ISO 1436-1 1SN Wire Braid Hydraulic Hose

DN Hose I.D Hose O.D WorkingPressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm MPa MPa mm kg/m meters
5 3/16 4.8 13.3 45 180 90 0.325 20-100
6 1/4 6.4 14.3 40 160 100 0.384 20-100
8 5/16 7.9 16.2 35 140 115 0.460 20-100
10 3/8 9.5 18.3 33 132 130 0.551 20-100
13 1/2 12.7 21.3 27.5 110 180 0.667 20-100
16 5/8 15.9 24.8 25 100 200 0.822 20-100
19 3/4 19.1 28.5 21.5 86 240 1.020 20-100
25 1 25.4 36.3 16.5 66 300 1.380 20-50
